Hall Effect keyboards are often described as hot-swappable, but that does not mean every magnetic switch works in every Hall Effect keyboard. A switch can fit physically and still produce incorrect travel readings, fail to calibrate properly, or not be supported by the keyboard firmware.
This guide was prepared by FGG Editorial to explain Hall Effect switch compatibility using current manufacturer documentation, Hall sensor technical references, firmware documentation, and FGG product-support materials. Compatibility examples are based on officially documented switch support rather than physical fit alone. Where a keyboard or switch combination is not officially confirmed, we treat compatibility as unconfirmed instead of assuming support.
Prepared by: FGG Editorial
Last reviewed: October 15, 2026
Review scope: Hall Effect switch compatibility, firmware support, calibration behavior, and manufacturer documentation.
How Does a Hall Effect Keyboard Detect Key Travel?
A conventional mechanical keyboard normally registers a key when electrical contacts inside the switch close. A Hall Effect keyboard uses a different sensing method.

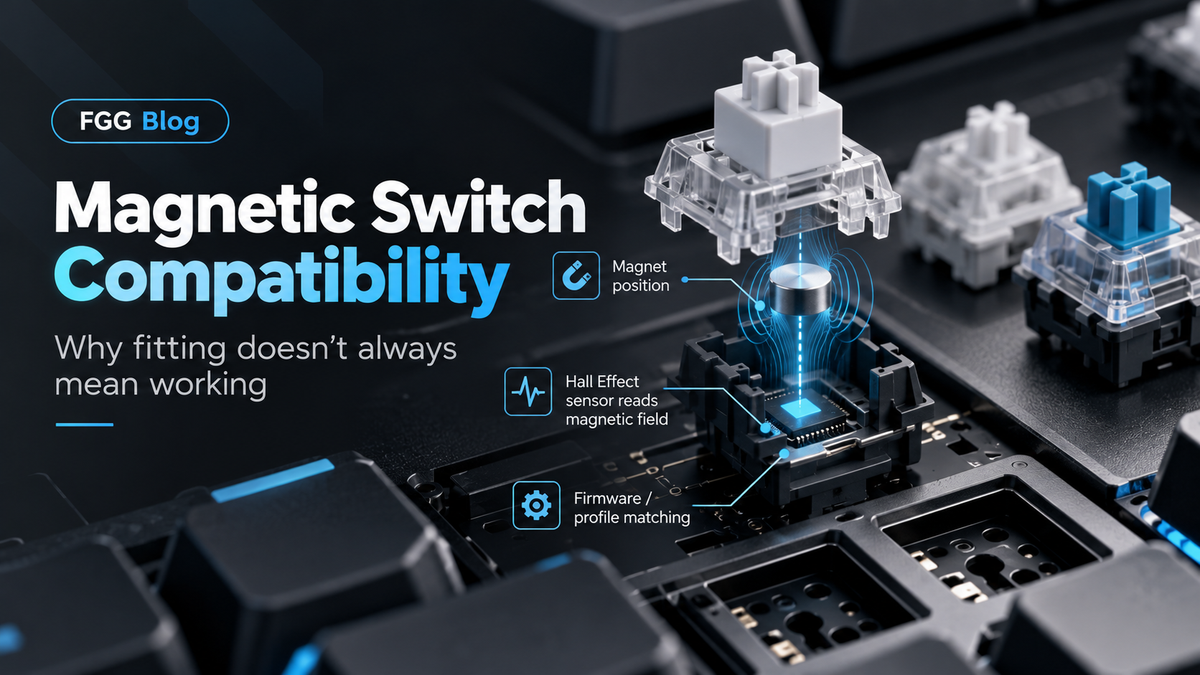

The switch contains a magnet and the PCB places a Hall sensor beneath or near it. As the key moves, the magnetic field at the sensor changes. The keyboard electronics sample that reading, and the firmware maps it to an estimated key position.
More precisely, Hall sensors respond to the magnetic field at the sensor location. Hall-effect device documentation commonly specifies that field in terms of magnetic flux density, often measured in millitesla (mT).
For a keyboard user, the simplest useful description is therefore:
This continuous position information can then be used for features such as adjustable actuation and Rapid Trigger.
Why Aren't Hall Effect Switches Universal?
Hot-swap describes whether a switch can be removed without soldering. Compatibility describes whether the replacement switch produces readings the keyboard can interpret correctly.
Those are separate questions.
Four factors matter most.
1. Magnet polarity
The keyboard's sensor design may expect a particular magnetic orientation. If the replacement switch uses a different orientation, the sensor may not interpret the field correctly.
2. Magnetic field strength and magnet position
Two magnetic switches can use different magnets or position those magnets differently inside the stem. That changes the magnetic field seen by the sensor over the full key travel.
3. PCB and sensor geometry
Sensor placement, distance from the magnet, PCB construction, and the switch's physical geometry all affect the measured signal.
4. Firmware support
Firmware has to translate sensor readings into usable travel values. A keyboard may therefore work best only with switch profiles that its firmware understands.
A Real Example: Wooting Switch Selector
A useful real-world example comes from Wooting's Switch Selector.
Wootility does not simply treat every magnetic switch as identical. Its Switch Selector lets users specify which supported switch is installed so the system can optimize calibration, switch performance, and analog accuracy for that switch profile.
Wootility v5.3.0 launched the stable Switch Selector with support for 28 switch types and variants, including Wooting's own Lekker switches and a range of third-party magnetic switches.
| Platform / Example | Switch Example | Requirement | What This Shows |
|---|---|---|---|
| Wooting platform using Switch Selector | Wooting Lekker v1 / v2 | Supported Wootility / firmware configuration | Native switch profiles can be selected and calibrated by firmware. |
| Wooting platform using Switch Selector | Gateron Jade Ruby | Use a Wootility / firmware version that includes the switch profile | Third-party support is explicit rather than assumed from physical fit. |
| Wooting platform using Switch Selector | Geon Raptor HE V2 | Use a supported Switch Selector profile | The keyboard software needs to know which magnetic switch profile is installed. |
| Any Hall Effect keyboard | A switch not listed by that keyboard or firmware | Official support not confirmed | Treat compatibility as unconfirmed, even if the switch fits mechanically. |
This is a much more useful way to think about magnetic-switch compatibility than simply asking whether two switches have the same shape.
What Calibration Can—and Cannot—Do
Calibration helps a keyboard map sensor readings to the physical travel of a switch that the platform already supports.
After changing magnetic switches, recalibration can help establish values such as:
- resting position,
- full travel,
- shallow actuation behavior,
- reset behavior,
- and Rapid Trigger movement.
If the switch uses an incompatible magnetic orientation, produces a signal outside the expected range, or is not supported by the keyboard firmware, calibration should not be treated as a universal fix.
What Should You Check Before Buying Replacement Magnetic Switches?
This is the practical part. Before buying a full set of replacement switches, check the following in order.
-
Confirm the keyboard technology.
Make sure the board actually uses Hall Effect magnetic sensing. -
Look for an official compatibility list.
A manufacturer's supported-switch list or switch selector is stronger evidence than appearance, polarity alone, or community guesses. -
Check the exact switch model.
Similar names or variants should not automatically be treated as identical. -
Check software and firmware requirements.
A newly supported switch may require a newer firmware or software version. - Recalibrate if the manufacturer recommends it.
-
Test a few switches before replacing the entire board.
Confirm resting detection, shallow actuation, full travel, reset behavior, and Rapid Trigger.
For FGG products, check the latest product-specific instructions before changing switches: FGG Product Manuals and FGG HUB.
Can You Put a Hall Effect Switch in a Normal Mechanical Keyboard?
Usually not.
A conventional mechanical keyboard normally expects a switch to complete an electrical contact. A magnetic switch relies on a magnet and a Hall sensor instead.
If the keyboard PCB does not contain the required magnetic sensing hardware, simply fitting a magnetic switch into the plate does not give the keyboard Hall Effect capability.
Can You Put a Mechanical Switch in a Hall Effect Keyboard?
Usually not on a Hall Effect-only PCB.
A conventional mechanical switch does not provide the moving magnetic field expected by the Hall sensor.
Hybrid designs can exist, so the exact keyboard specification should always take priority over a general rule.
Hall Effect vs. Mechanical Hot-Swap Compatibility
| Compatibility Factor | Mechanical Hot-Swap | Hall Effect Magnetic Switch |
|---|---|---|
| Physical fit | Important | Important |
| Electrical contacts | Usually essential | Not used in the same way |
| Hall sensor | Not required | Required |
| Magnet characteristics | Not relevant | Can affect compatibility |
| Firmware switch profile | Usually not central | Can be important |
| Calibration after swap | Usually unnecessary | May be recommended |
Why Can the Same Magnetic Switch Respond Differently Across Keyboards?
Using the same switch does not guarantee identical input behavior.
The switch is only one part of the sensing chain. Two keyboards using the same magnetic switch can still differ because of:
- Hall sensor characteristics,
- sensor placement,
- PCB geometry,
- signal processing,
- firmware filtering,
- calibration,
- scan implementation,
- and Rapid Trigger algorithms.
That affects input response, not necessarily physical switch feel.
Physical feel is also influenced by factors such as the plate, mounting system, keycaps, stabilizers, case construction, and acoustic materials.
Does Changing Magnetic Switches Make a Keyboard Faster?
Not automatically.
Changing switches can affect spring weight, smoothness, rebound, sound, travel feel, and how the magnetic signal behaves with the sensor.
It does not automatically increase:
- USB polling rate,
- keyboard scan rate,
- controller speed,
- or firmware processing performance.
Those properties depend on the keyboard platform as a whole.
Rapid Trigger, DKS, SOCD, Mod-Tap: Are They All Hall Effect Features?
No. These terms are often grouped together in gaming-keyboard marketing, but they do not all rely on the same mechanism.
Rapid Trigger directly uses changing key-position information to adjust reset and re-actuation behavior.
DKS (Dynamic Keystroke) can use different points in the key travel to trigger different actions on keyboards that support analog or position-aware input.
By contrast, SOCD handling, Mod-Tap, and Toggle behavior are primarily firmware-level input rules or mappings. They do not inherently require a Hall Effect switch.
If you want the distinctions in more detail, read: DKS, SOCD, Mod-Tap & TGL Explained .
Final Takeaway
Hall Effect switches can be hot-swappable without being universally interchangeable.
The most reliable compatibility evidence is not “it fits” or “the magnet points the same way.” It is an official compatibility list, firmware switch profile, or documentation for the exact keyboard and switch combination.
Cross-brand magnetic-switch support is improving, but hot-swappable still does not mean universal.
Frequently Asked Questions
Are Hall Effect switches universally compatible?
No. Physical fit is only one factor. Magnet characteristics, sensor geometry, firmware support, and calibration can all affect whether a switch works correctly.
If two switches have the same magnet polarity, are they compatible?
Not necessarily. Matching polarity can be one useful check, but magnet strength, magnet position, sensor distance, firmware profiles, and calibration may still differ.
Can calibration make any magnetic switch work?
No. Calibration can improve how a supported switch is interpreted, but it does not guarantee compatibility with an unsupported switch.
Should I test magnetic switches before replacing a whole keyboard?
Yes. If support is not completely clear, test a few switches first and check full travel, resting position, actuation, reset behavior, and Rapid Trigger before replacing the entire board.
Does a different magnetic switch increase polling rate?
No. Polling rate depends primarily on the keyboard controller, firmware, USB implementation, and overall electronics rather than the switch alone.
Sources & Further Reading
- Gateron — Adjustable Magnetic Switches for Hall Effect Keyboards — Magnet polarity, magnetic characteristics, PCB/sensor geometry, firmware, and recalibration.
- Wooting — Wootility v5.3.0 Switch Selector — Official supported magnetic-switch profiles and switch-aware calibration.
- Wooting — Hall Effect switch, sensor, PCBA, and firmware system design .
- Texas Instruments — DRV5015 Hall Effect Sensor — Reference for Hall Effect sensor terminology and magnetic flux density.
- RTINGS — What Is a Hall Effect Keyboard? — Independent overview of Hall Effect keyboard operation.
Magnetic-switch compatibility can change as firmware and supported-switch lists are updated. Check the latest documentation for the exact keyboard and switch model before replacing switches.
